8 Basket Side to Side Mitter Curtain

Click the thumbnail below to see the video clip.
Real Player required, if you do not have it, please download the free player here.

Econocraft 8 basket compact Mitter Curtains allow you to place more machines in a tunnel wash to clean vehicles faster and more thoroughly. They are perfect for large tunnels, as well as shorter tunnels where space and cars per hour are minimal.

Performance

  • Capable of high rpm’s for superior cleaning
  • Water spray from sides
  • Utilizes fresh or reclaimed water

Structure

  • Constructed of 4” x 4” x 10-gauge tubing
  • Stainless steel #304
  • Reinforced with bolt sleeves
  • No grease uhmw self lubricating curtain bushings
  • Lifetime frame guarantee

Operation

  • TEFC electric fan cooled motor
  • (1) 2HP motor 1750 RPM
  • Gearbox reducer (1) @ 40:1 ratio
  • Optional hydraulics available

Specifications

  • Equipment Height – 11’ 6”
  • Vehicle Clearance – 92”
  • Width – 12’
  • Electric - 220 / 208 Volt 3 phase standard
  • 380 / 440 Volt 50 cycle optional
  • 440 / 575 Volt 60 cycle optional
  • Hydraulic Power – optional
  • Air – None
  • Water – 3/4” PVC schedule 80
  • Water Nozzles – 10
    1 GPM each standard
  • Shipping Weight – 1200 to 1800 lbs
  • Tunnel Length:
    • 8 basket Side-to-Side Mitter – 4’ 6”
    • 8 basket Side-to-Side Mitter with Baby Rockers – 7’

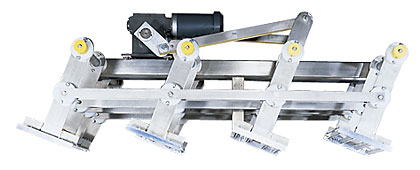

8 Basket Side to Side

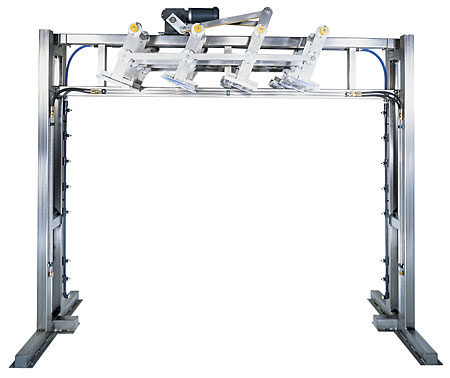

Front View
Replacement Cloth For New Style Side to Side Mitter 8 Baskets (ECW186NM)
